Diesel Engine Driven Concrete Vibrator
| Product Name | CVT |
| Engine Type | Diesel Engine |
| Power | 5HP |
| Vibrating Head Length | 6m |
| DFrequency | 9800-12000(V.P.M) |
| MOQ | 20 Pcs |
1 Year Limited Warranty
243cc
Displacement
5HP
Diesel Engine
2.5L
Fuel Tank
Recoil
Start System

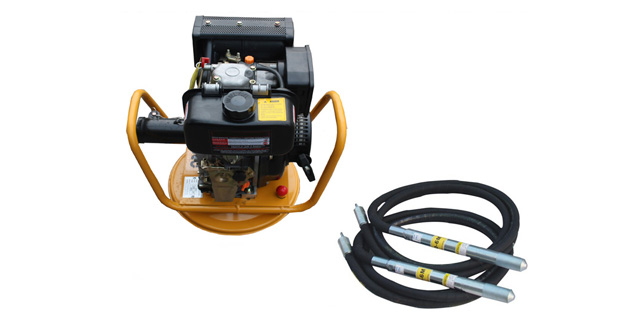

C.A.G Diesel Engine Driven Concrete Vibrator, is powered by a Have-duty, Air cooled, Single Cylinder, 5HP/243cc Diesel engine. This concrete vibrator has a 6-meter flexi-drive shaft, with the following concrete poker sizes available: 28mm /32mm /38mm /45mm /50mm /60mm. Wide ranges of pock models are suited to all types of work situations. This kind of Diesel powered concrete vibrator is the most suitable alternative for sites where there is no electric current available.
| Model No. | CVT |
| Engine Type | Diesel S173F |
| Power kw(hp) | 3.8(5.2) |
| Weight vibrator Head Not Included(kg) | 22 |
| Vibrating Head Length | 6m |
| Vibrating Head Diameter(mm) | 28-32-38-45-50-60 |
| Packing cm | 51.5*38*51.5/21.5*42.5*44.5 |
