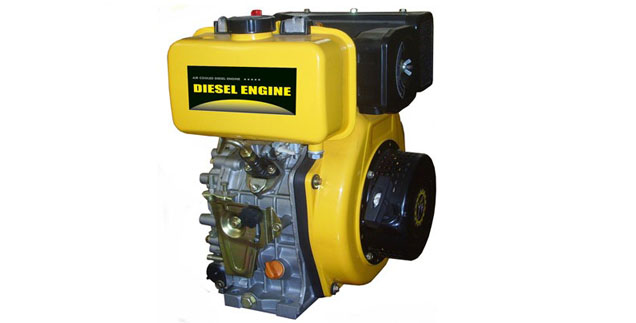

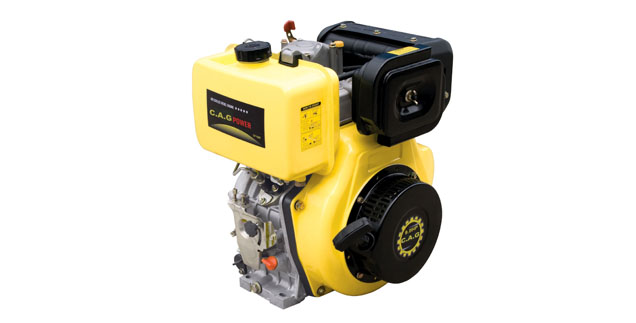

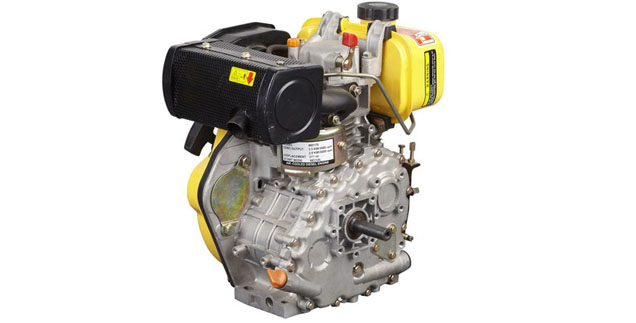

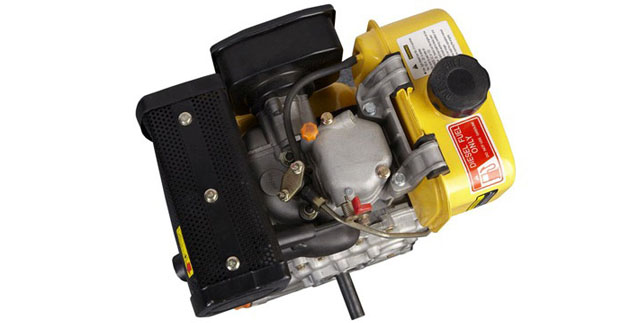

4HP Diesel Engine
| Product Name | TP170F |
| Single-cylinder | 4-stroke |
| 2.5 kW/3000 r/min | 2.8 kW/3600 r/min |
| Shaft Type | Horizontal |
| Cooling system | Air cooled |
| Start System | Recoil or Electric |
| MOQ | 20 Pcs |
1-year limited warranty
70x55(mm)
Bore×Stroke
211cc
Displacement
2.5L
Fuel Tank
0.75L
oil capacity
C.A.G’s 4HP single cylinder diesel engine, created with direct injection technology, is quick and easy to start with just one-pull. An ideal match between the combustion chamber and the injection system creates the maximum possible combustion efficiency. The Multiple PTO shaft is available along with electric or recoil starting. C.A.G’s 4 HP diesel engine delivers smooth, high speed operation.
You can find all CAG design engines here .
| Model: | TP170F |
| Engine Type: | Vertical,Single cylinder, 4-cycle air-cooled,direct injection |
| Bore×Stroke (mm) | 70×55 |
| Displacement(cc) | 211 |
| Compression ratio | 20:01 |
| Rated power/speed (kw/r/min): | 2.5/3000 2.8/3600 |
| Lowest rotation speed: | at zero load (r/min) ≤1300 |
| Lubricating system: | Pressure splashed |
| Starting system: | Recoil /Electric starter |
| Rotation direction: | (face to the output axle) Anticlockwise |
| Fuel type: | 0#、-10#、-20# diesel |
| Fuel tank capacity (L): | 2.5 |
| Fuel consumption/related speed (g/kW.h/r/min) | 280.2/3000 288.3/3600 |
| Lube oil type: | CD grade or SAE 10W-30, 15W-40 |
| Lube oil capacity (L): | 0.75 |
| Starting motor capacity (V、kW): | 12V 0.8kW |
| Charging generator capacity (V、A) : | 12V 3A |
| Battery capacity (V、Ah): | 12V24Ah-36Ah |
| Packing size（L×W×H）mm: | 420X380X470 |
| Gross weight(kg): | ≤27（Recoil starter）or≤32（Electric starter） |
