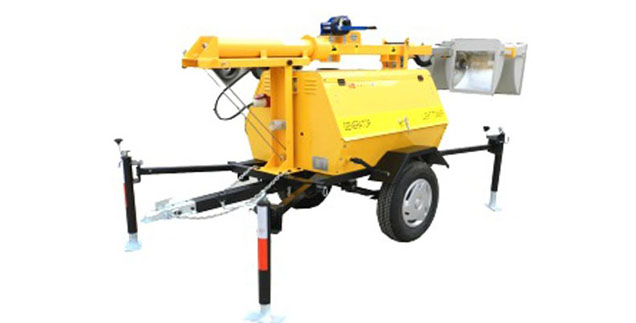

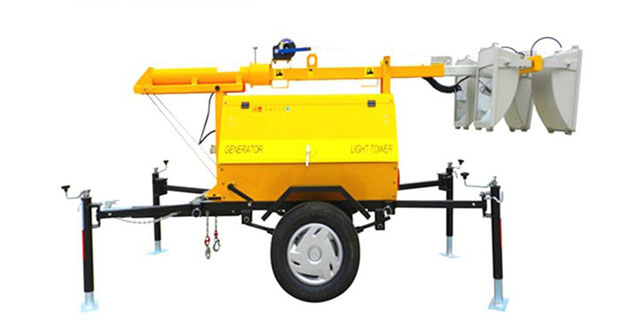

Kubota Power Mobile Lighting Tower
Powered by Kubata ensure to provide reliable power for customer.
Mechanical, 3 stages mast up to 9 meters
4x1000W high pressure aluminum lamps
100L Large capacity fuel tanks provide over 50 hrs running time.
A 30-foot adjustable tower rotates
360 degrees for optimum lighting
Kubota
Powered by
4x1000Watts
Power of lamp
Rated 6KW
50Hz
Rated 8KW
60Hz
C.A.G Lighting Towers are powered by a Kubota engine, 4×1000 watt metal halide lamps, and a 30-foot adjustable tower that rotates 360 degrees for optimum lighting flexibility. Quiet operation offers maximum versatility for almost any application. The large capacity fuel tank design provides over 50 hours of continuous running time. Whether lighting a construction jobsite at night or during a planned shutdown site, C.A.G light towers are suitable for a variety of applications like construction sites, mining fields, rental businesses, and public equipment services.
MAIN SPECIFICATION OF LIGHTING TOWER(50/60Hz) | |||
Lighting Tower Model | LT-6000K / LT-8000K | ||
Genset Model | YN-8K/S | ||
Frequency (Hz) | 50 | 60 | |
Continuous output (KW/KVA) | 6.0 / 6.0 | 8.0/8.0 | |
Standby output (KW/KVA) | 6.6 / 6.6 | 9.0/9.0 | |
MAST | |||
Maximum extension of mast (M) | 6 or 9 | ||
Elevation | Mechanical / Electric | ||
Raising / lowing mast | Winch (Mechanical) Botton (Electric) | ||
Stages | 3 | ||
Turning angle | 360 degrees non-continuous | ||
LAMP | |||
Total power of lamp | 4x1000W | ||
Type of lamp | Metal halide lamp | ||
Lighting capacity | 4×110000 lumen | ||
Lifetime of lamp | 1000hours | ||
Working temperature | < 85℃ | ||
Connection protection index | IP54 | ||
Light coverage | 5 to 7 acres | ||
ALTERRNATOR | |||
Alternator Model | SLG164B | SLG164B | |
Continuous output (KW/KVA) | 8.8/8.8 | 11.0/11.0 | |
Characters | 4 Pote, Rotating Field, Bnjshless, Self excited, H dass insulation, IP21.12 winding leads | ||
Voltage regulation | ±1.0% with4% engine governing | ||
Waveform distortion | No load ∠1.5% and non-distorting balanced linear load ∠5% | ||
THF/TIF | ∠2% or ∠50 | ||
ENGINE | |||
Engine Model | D1105-BG | ||
Engine made by | Kubota, Japan | ||
Engine Characters | Water-cooled, in line, 3 cylinder, 1500rpm/1800rpm | ||
Continuous output (KW) | 8.4 | 10.1 | |
Standby output (KW) | 9.5 | 11.5 | |
Aspiration | Natural | ||
Fuel Consumption (L/h) at 100% load | 2 | ||
Fuel tank capacity (L) | 100 | ||
TRAILER | |||
Stabilier supports | 5xManual | 5xManual | |
Anti-wind capacity | <10 | <10 | |
Brake | Manual | Manual | |
DIMENSIONS & WEIGHT | |||
Dimensions | Length (mm) | 4400 | |
Width (mm) | 1200 | ||
Height (mm) | 1930 | ||
Dry weight (kg) | 780 |
