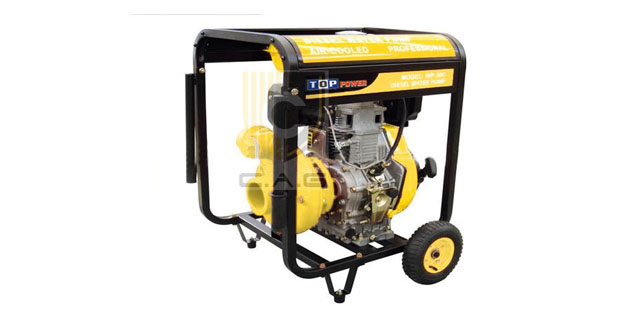

2inch Diesel Cast Pump
Product Name | TP20CP |
In&Out Diameter | 50mm /2inch |
Engine Type | 6HP Diesel Engine |
Rated capacity | 42.0(m³/h) |
Rated total head | 26m |
Max.suction head | 8m |
MOQ | 20 Pcs |
1-year limited Warranty
80(mm)
In/Outlet Size
Casting Pump
Pump Type
3.5L/12.5L
Fuel Tank
6HP/296cc
Diesel Engine

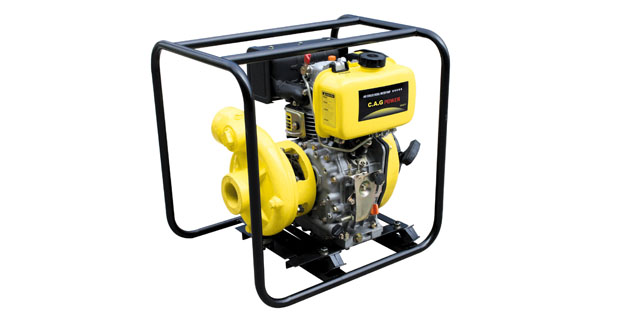

C.A.G offers a 2″ diesel cast iron centrifugal pump with a 6 HP C.A.G diesel air cooled engine, available for recoil & electric starts. This kind of pump is built with a heavy-duty cast iron pump casing, and a matching dynamically balanced impeller. Stainless steel shaft sleeves are designed to protect the engine shaft well. Replaceable inlet and outlet flanges built into its design make maintenance easy. The cast iron centrifugal pump is ideal for a wide variety of pressure boosting, such as liquid agricultural chemical sprayer, and lawn and turf irrigation applications.
Model: TP20CP |
Water inlet pipe nominal diameter (mm) 50(2″) |
Water outlet pipe nominal diameter(mm) 50(2″) |
Rated capacity(m3/h) 42 |
Rated total head (mm) 26 |
Max.suction head(m) 8.0 |
Self-priming time(s/4m) 60 |
Fuel Tank:3.5L or 12.5L |
Engine model TP178F |
Type Single cylinder, four-stroke, direct injection, air-cooled |
Borexstroke mm 78×62 |
Displacement(cm3) 296 |
Max.power kW/(r/min) 4.4/3600 |
Cooling system Air cooled |
Fuel type 0#(summer), -10#(winter), -35#(chillness) diesel |
Starter system Recoil starter |
Noise level[dB(A)/7m)] 74 |
