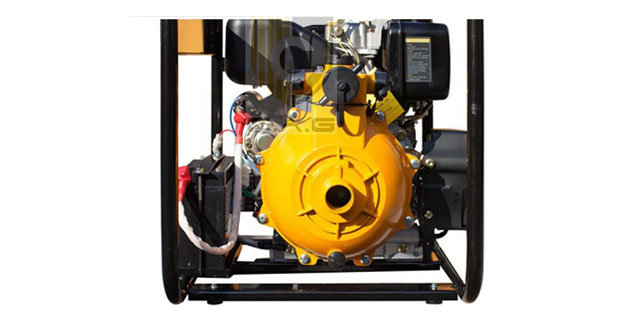

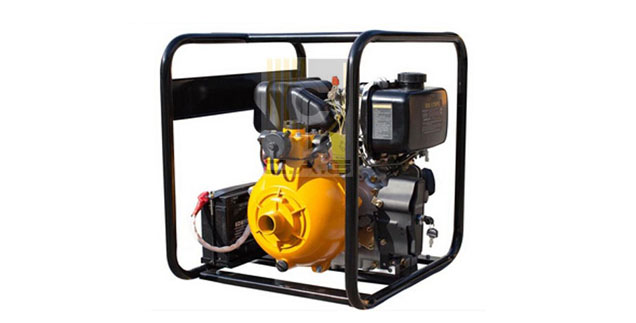

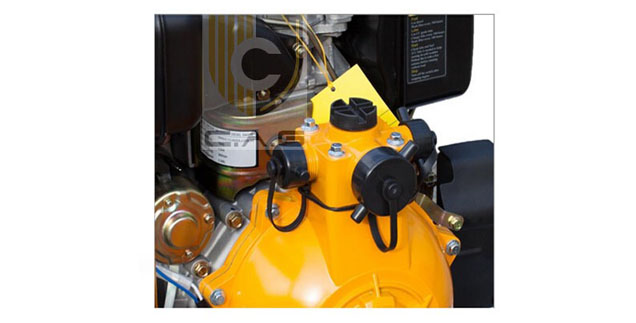

2inch High Pressure Diesel Water Pump
Product Name | TP20HP |
In&Out Diameter | 50mm /2inch |
Engine Type | 6HP Diesel Engine |
Discharge capacity | 500 (L/min) |
Maximum lift | 65m |
Max.suction head | 8m |
MOQ | 20 Pcs |
1 Year Limited Warranty
50(mm)
In/Outlet Size
High Pressure
Pump Type
3.5L/12.5L
Fuel Tank
6HP /296cc
Diesel Engine
2-inch diesel high pressure water pumps powered by a C.A.G fuel efficient 6hp diesel engine come complete with a high quality air filter, along with low oil shut down for added safety. To ensure the best performance, the high pressure pump has a long-lasting silicon carbide mechanical seal, aluminum impeller, and cast iron volute. This kind of pump is ideal for washing heavy-duty equipment, sprinkler systems, and for providing the water pressure needed to fight fires in remote areas.
Model: TP20HP |
Inlet diameter: 2″(50 mm) |
Outlet diameter: 2″(50 mm) |
Maximum lift: 65 m |
Discharge capacity: 500 L/min |
Suction height: 7 m |
Pump type: Centrifugal, self priming |
Impeller: Single or Double |
Starting system: Recoil & electric start |
Engine type: Air-cooled diesel engine |
Engine model: TP178F(6 HP) |
Displacement: 296 cc |
Fuel tank capacity: 3.5 L or 12.5L |
Dimensions(L x W x H): 580 x 470 x 570 mm |
N.W./G..W.:52 / 54 kg |
