4inch Diesel Water Pump
Product Name | TP40DP |
In&Out Diameter | 100mm /4inch |
Engine Type | 9HP Diesel Engine |
Rated capacity | 40.0(m³/h) |
Rated total head | 16m |
Max.suction head | 8m |
MOQ | 20 Pcs |
1-year limited Warranty
100(mm)
In/Outlet Size
9HP/406cc
Diesel Engine
5.5L/12.5L
Fuel Tank
Recoil or Electric
Start System

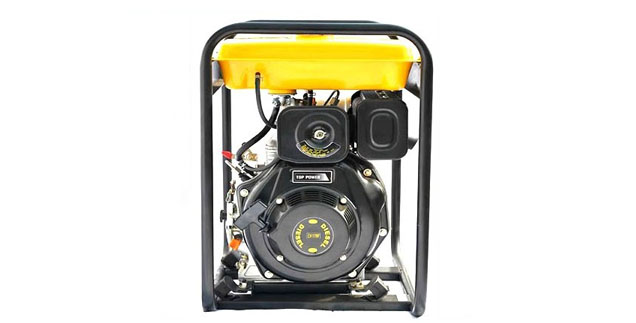

C.A.G 4 inch TP40DP Clean Water Diesel pumps have the ability to draw water up to 8m in height, and to move water up to 40 m³ per hour capacity, for a total head rating of 16m. The pump has cast iron impeller and volute fittings which ensures maximum durability and performance. Ceramic carbon type mechanical seals used on our pump provide rugged construction for longer life. A heavy duty steel frame protects the pump and the engine on all sides. C.A.G Portable diesel pump are sure to be helpful in a variety of applications such as: agriculture, industrial, residential, rentals, etc.
Model: TP40DP |
Type Diesel pump |
Suction&discharge port diameter(mm)(in) 100(4″) |
Rated capacity(m³/h) 40.0 |
Rated total head(m) 16 |
Self-priming time(s/4m) 180 |
Max.suction head(m) 8.0 |
Rotation speed(r/min) 3600 |
Noise level[dB(A)/7m)] 79.0 |
Fuel Tank:5.5L or 12.5L |
Net weight(kg) 62.5 |
Engine model TP186F |
Rated power(kW) 6.3 |
Rated speed(r/min) 3600 |
Fuel consumption(g/kW.h) 281 |
Displacement(cm3) 406 |
Starer system Recoil starter |
