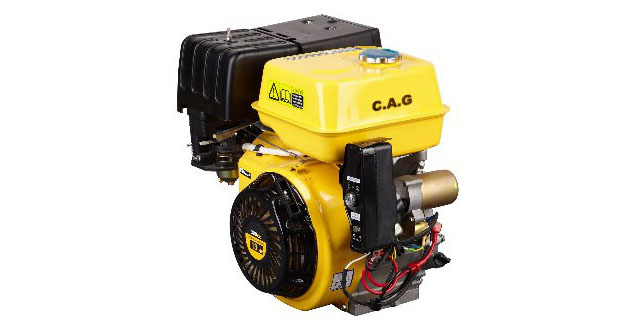

17HP Gasoline Engine
Product Name | TG490 |
Single-cylinder | 4-stroke |
MaxPower | 17HP/3600 rpm |
Shaft Type | Horizontal |
Cooling system | Air cooled |
Start System | Recoil |
MOQ | 20 Pcs |
1 Year Limited Warranty
92x66(mm)
Bore×Stroke
483cc
Displacement
6.5L
Fuel Tank
1.1L
Oil Capacity
C.A.G 490cc Gasoline 4-cycle, horizontal shaft engine deliver a max of 17HP and 24.5N.m/2500rpm torque to the power sources. The overhead valve design provides power with better fuel efficiency and cleaner emissions. Cast iron cylinder sleeves and dual ball bearings combine to meet your needs time after time. The C.A.G general purpose engine offers longer life and ease of operation for outdoor power equipment including pressure washers, generators, chippers, lawnmowers, as well as rescue and construction equipment.
Model | TG490 |
Engine type | 4-stroke 25°inclined single cylinder, air-cooled |
Bore x stroke | 92mm x66mm |
Displacement | 490cc |
Compression ratio | 8:1 |
Max power output | 17HP/3600rpm |
Max torque | 24.5N.m/2500rpm |
Ignition system | non-contact transistorized ignition (TCI) |
Start mode | Recoil starter/Electric starter |
Air cleaner | semi-dry, oil bath, dual, double silent and cyclone type |
Fuel tank capacity | 6.5L |
Fuel consumption | 275g/HP-hour |
Engine oil capacity | 1.1L |
Net weight | 35/36kg |
Dimensions (L x W x H) | 520 x 420 x 470mm |
