3kw Petrol Generator (TW Series )
Product Name | TW3500B | |
Single-cylinder | 4-stroke | |
2.7kw@50Hz | 3.2kw@60Hz | |
| Brush Type | |
Votage Control | AVR | |
Start System | Recoil or Electric | |
MOQ | 20 Pcs |
1-Year Limited Warranty
210cc/7.0HP
Gasoline Engine
3.0kw or 3.7kw
Max Power
15L
Fuel Tank
V Shape Design
Open Frame

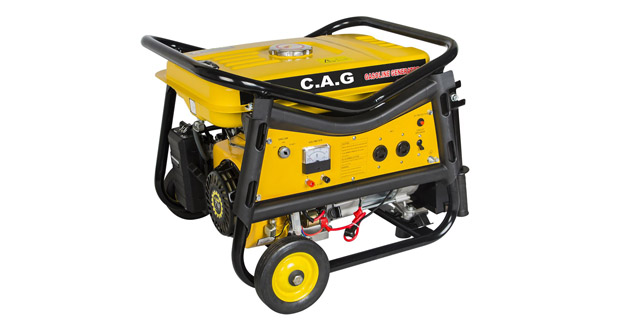

C.A.G TW series Gasoline Portable Generators TW3500B are powered by a reliable single cylinder, OHV air cooled 4-cycle, 7HP petrol engine. The OHV engine is equipped with a low oil shutdown system that protects the engine from costly damage. This unit has a V shape design, dual folding handles, and 8-inch never-flat wheels for balanced carrying. This gasoline portable generator provides reliable, clean, and instant power. The generator is ideal for emergencies, job site use, recreation, household, lawn and garden, small tool operation, and home back-up power.
Model | TW3500B |
Type | Brush |
Voltage Regulate | AVR |
Frequency Hz | 50 | 60 |
Rated AC Voltage (V) | 230V | 120V-240V |
Rated AC Output (KVA) | 2.7 | 3.2 |
Peak AC Output (KVA) | 3.0 | 3.7 |
Power Factor COSφ | 1 |
Model | TE210 |
Type | OHV ,4-stroke, single cylinder ,Air-cooled |
Bore x Stroke (mm) | 70×56 |
Displacement (ml) | 210 |
Max. output (HP/rpm) | 7.0/3600 |
Fuel Type | Unleaded Gasoline |
Fuel Tank Capacity (L) | 15L |
Continuous Operating 1/2 load (h) | 12 |
Engine Oil Standard | SF or Higher Grade |
Oil Capacity (L/gal) | 0.6/.016 |
Ignition system | T.C.I. |
Starting System | Recoil and hand-operated /Electric start |
Operating Noise Level (7m) dB(A) | 68 |
Dimensions L×W×H (mm) | 610x460x470 |
Net /Gross Weight (kg) | 39/41(46) |
20/40FT unit | 225/475 |
