6kw Gasoline Generator
Product Name | TG7500/E | |
Single-cylinder | 4-stroke | |
6.0kw@50Hz | 7.0kw@60Hz | |
| Brush Type | |
Votage Control | AVR | |
Start System | Recoil or Electric | |
MOQ | 20 Pcs |
1-Year Limited Warranty
190F/15HP
Gasoline Engine
6.5kw or 7.5kw
Max Power
25L
Fuel Tank
ECO Design
Open Frame

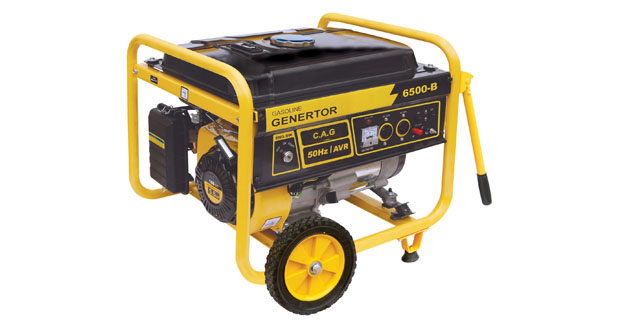

C.A.G’s TG7500/E Gasoline Portable Generator, powered by a reliable 407cc 14HP, single cylinder, 4-stroke OHV engine has a maximum power of 6500 watts at 50Hz and 7500 watts at 60Hz. A 25L fuel tank supplies over 10-hours of continuous operation at 50-percent load. The wheel kits and handle design means the gasoline generator is easy to move in and out of storage or to new sites. This unit is ideal for large RV’s, power tools, trailers, bigger homes, or construction sites.
Model | TG6500/E |
Type | Brush |
Voltage Regulate | AVR |
Frequency Hz | 50 | 60 |
Rated AC Voltage (V) | 230V | 120V-240V |
Rated AC Output (KVA) | 6.0 | 7.0 |
Peak AC Output (KVA) | 6.5 | 7.5 |
Power Factor COSφ | 1 |
Model | TE405 |
Type | OHV ,4-stroke, single cylinder ,Air-cooled |
Bore x Stroke (mm) | 90×64 |
Displacement (ml) | 407 |
Max. output (HP/rpm) | 15.0/3600 |
Fuel Type | Unleaded Gasoline |
Fuel Tank Capacity (L) | 25L |
Continuous Operating 1/2 load (h) | 10 |
Engine Oil Standard | SF or Higher Grade |
Oil Capacity (L/gal) | 1.1/0.29 |
Ignition system | T.C.I. |
Starting System | Recoil and hand-operated /Electric start |
Operating Noise Level (7m) dB(A) | 72 |
Dimensions L×W×H (mm) | 700x540x580 / 700*540*630(Handle Design ) |
Net /Gross Weight (kg) | 74/76 (87) |
20/40FT unit | 136 (102) / 272 (216) |
