4inch Gasoline Water Pump
Product Name | TP40CX |
In&Out Diameter | 100mm /4inch |
Engine Type | 9HP Gasoline Engine |
Rated capacity | 80.0(m³/h) |
Rated total head | 25m |
Max.suction head | 7m |
MOQ | 20 Pcs |
1-year limited Warranty
100(mm)
In/Outlet Size
9HP/270cc
Gasoline Engine
6L
Fuel Tank
Recoil or Electric
Start System

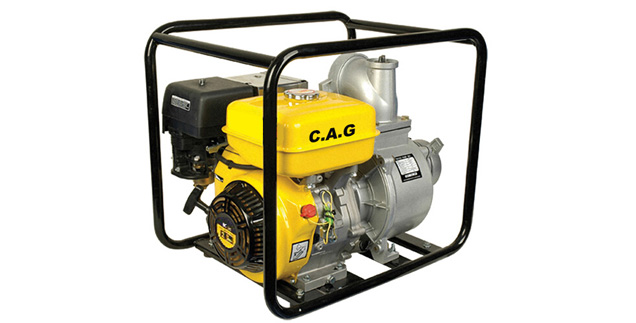

C.A.G’s TP40CX 4- inch Gasoline Self-Priming Clean Water Pump is the ultimate pump for water related businesses. The petrol water pump features a C.A.G air cooled, 9HP OHV engine powering a 4-Inch centrifugal water pump, making it ideal for remote clear water irrigation. High-end ceramic carbon mechanical seals, cast-iron impellers, and volute are especially suited for heavy-duty applications such as pumping contaminated and abrasive fluids. This C.A.G petrol water pump is ideal for general purpose use such as backyard pools, draining pools, ponds, and sumps of clear water.
Model | TP40CX |
Inlet and outlet size | 100mm (4″) |
Rated speed | 3,600rpm |
Displacement | 80m³/h |
Pump lift | 25m |
Suction height | 7m |
Engine model | TG270 |
Displacement | 269ml |
Engine max output | 9.0/3600(Hp/rpm) |
Fuel volume | 6L |
Bore x stroke | 77×58(mm) |
Compression ratio | 8.5:1 |
Oil volume | 1.1L |
Min fuel consumption | 313g/HP-hour |
Ignition model | transistor magneto |
Start mode | Recoil or Electric |
NW/GW | 47/49(kg)) |
Package dimensions | 650x510x555(mm) |
