270kg Reversible Plate Compactor
Product Name | TPCNP-330 |
Centrifugal Force | 38kN |
Weight | 602 lbs |
Compaction Depth | 90cm(34in) |
Frequency | 3750vpm |
MOQ | 20 Pcs |
1 Year Limited Warranty
Reversible Direction
Compactor Type
270kg
Weight
9HP
Diesel Engine
31in x 18in
Plate Size

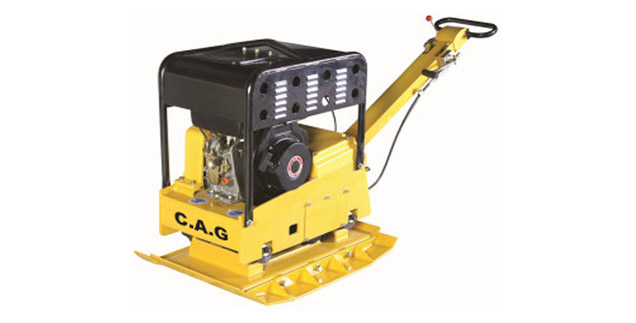

C.A.G Reversible Vibratory Plate Compactor, model TPCNP-330, is powered by a Air cooled, Single Cylinder 9HP Diesel engine. This reversible plate compactor with its 31 x 18 inch compactor plate size, provides 38kN of centrifugal force oscillating at 3750 vibrations per minute to ensure your project’s base material is fully & completely compacted. The C.A.G reversible plate compactor is the perfect tool to complete your home improvement, paving, brickwork, sidewalk, patio, or for compaction of gravel & sand for raised gardens & retaining walls.
Model | TPCNP-330 |
Engine Type | Diesel Engine 186F |
Power Kw(hp) | 6.6(9.0) |
Weight kg(lbs) | 270(602) |
Frequency vpm | 3750 |
Centrifugal Force kN | 38 |
Compaction Depth cm(in) | 90(34) |
Travel Speed cm/s(in/s) | 25(10) |
Efficiency m2/hr(ft2/hr) | 650(6950) |
Plate Size cm(in) | 82*48(31*18)/Extension plate:82*8.5(31*3.3) |
Package cm(in) | 82*48(31*18)/Extension plate:82*8.5(31*3.3) |

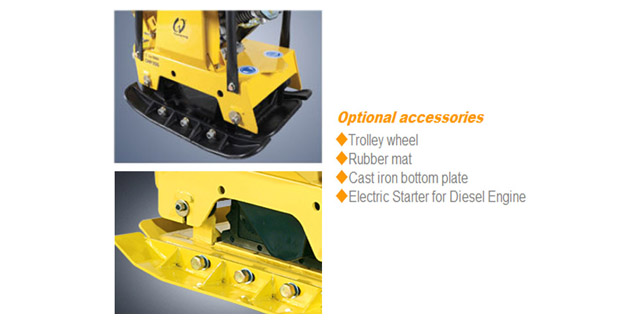

Optional trolley wheel | |
Optional rubber mat | |
Optional Extension plate | |
Optional Cast iron bottom plate | |
Optional Electric Starter for Diesel Engine | |
Optional Engine: Optional Engine :Honda GX270 9HP,Loncin G270 9HP,B&S 13.5HP ,Kohler CH395 9.5HP/CH440 14HP |
