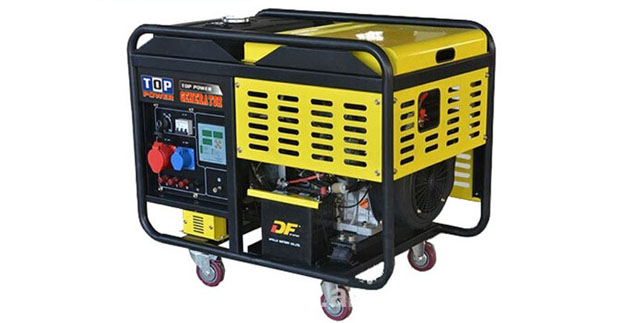

10kva Silent Type Diesel Generator
Product Name | TP10000DGS | |
Twin-cylinders | 4-stroke | |
Rated Power | 10Kva | |
| Brush Type | |
Votage Control | AVR | |
Start System | Electric | |
MOQ | 20 Pcs |
1-Year Limited Warranty
198F
Diesel Engine
10kva
Rated Power
20L
Fuel Tank
Silent Design
SoundProof
C.A.G’s 198F diesel generator series provide 10kva output, driven by high quality air-cooled OHV Single-cylinder diesel engines that deliver quality power that is smooth, reliable, and provides the advantage of low fuel consumption to our customers. These Single cylinder type diesel generators are all fitted with an electric start function; a 20L tank can provide 4.5 hours running time at half load. It is the ideal power for emergency stand-by, mobile emergency service, and a portable power source.
Modle | TP10000DGS | |
Rated frequency (Hz) | 50 | 60 |
Rated rotation speed (rpm) | 3000 | 3600 |
Rated current [A] | 36 | 72 |
Continues A.C output (kw) | 7.5 | |
Continues A.C max output (kw) | 8.0 | |
Rated voltage(v) | 220 or 220/380 | 120/240 or 416/240 |
DC output | 12V 8A | |
Power factor [cos] | 1 | |
Phase number | Single phase or three phase | |
Excitation system | Centrifugal weight system | |
Fuel type | Diesel | |
Fuel tank capacity(L) | 20 | |
Fuel consumption(g/kw.h) | 298 | |
Continues running hour on full tank(h) | 4.5 | |
Noise level dB (A)/7m (zero load-full load) | 74 | |
Diesel Engine Type | Single-cylinder,4-stroke,air-cooled | |
Displacement [cc] | 618 | |
Engine model | 198FE | |
Rated rotation speed (rpm) | 3600 | |
Starting system | electric starter | |
Overall dimension (LxWxH) [mm ] | 1005x600x720 | |
N/G Weight (kg) | 180 |
