15kva Diesel Generator
Product Name | TP15000DG | |
Twin-cylinders | 4-stroke | |
Rated Power | 15Kva | |
| Brush Type | |
Votage Control | AVR | |
Start System | Electric | |
MOQ | 20 Pcs |
1-Year Limited Warranty
2V92/997cc
Diesel Engine
15kva
Max Power
28L
Fuel Tank
LUXY Design
Open Frame

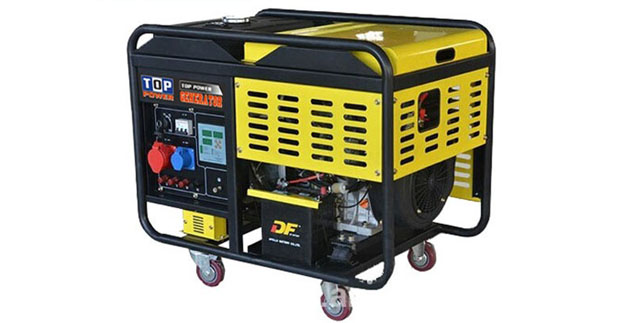

C.A.G’s V-twin cylinder diesel generator series provide from 10kva up to 15kva output, driven by high quality air-cooled OHV V-twin diesel engines that deliver quality power that is smooth, reliable, and provides the advantage of low fuel consumption to our customers. These twin cylinder type diesel generators are all fitted with an electric start function; a 28L tank can provide 7.5 hours running time at half load. It is the ideal power for emergency stand-by, mobile emergency service, and a portable power source.
Model | TP15000DG | |
Rated frequency(hz) | 50hz | 60hz |
Rated rotation speed(rpm) | 3000 | 3600 |
Rated voltage(v) | 220 or 220/380 | 120/240 or 416/240 |
Rated output(kw) | 11 | |
Max output(kw) | 12 | |
DC output(V.A) | 12/8.3 | |
Phase No. | Single Phase or 3 Phase | |
Structure type | Open flame type | |
Fuel tank capacity(L) | 28L | |
Noise level@7m | 74 | |
Lube | CDgrade or SAE 10W-30,15W-40 | |
Fuel | 0#(summer) or 10#(winter) diesel oil | |
Starting system | Electrical-Start | |
Diesel engine model | 2V292 .V-Twin,4-stroke,air-cooled | |
Displacement(cc) | 997 | |
Fuel consumption(g./kw*h) | ≤260 | |
Compression ratio | 20:01 | |
Battery Ah | 12V 36Ah | |
Protection system | low oil alarm | |
Overall dimension(LxWxH)[mm] | 1120x710x1030 | |
Weight/kg | 215 |
