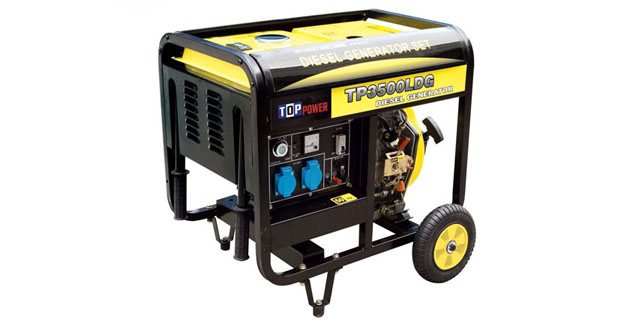

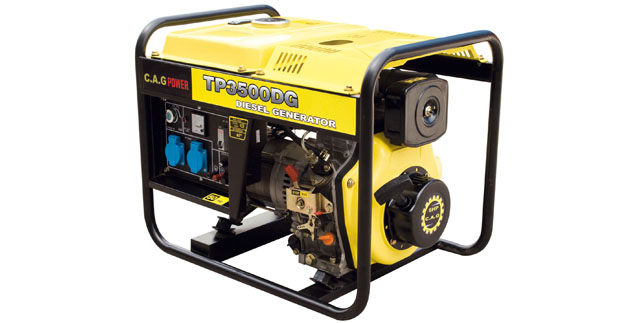

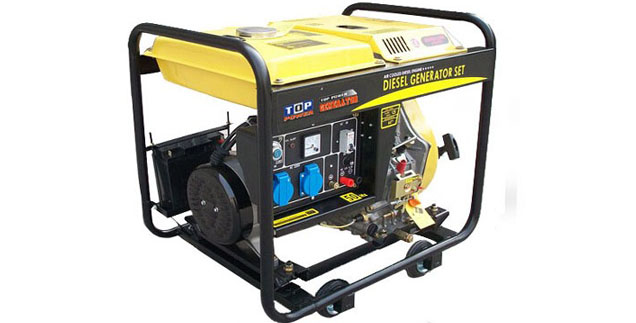

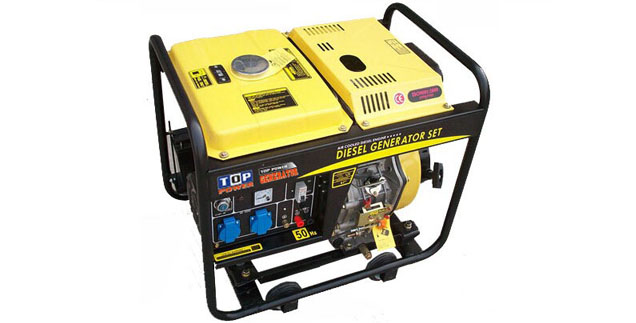

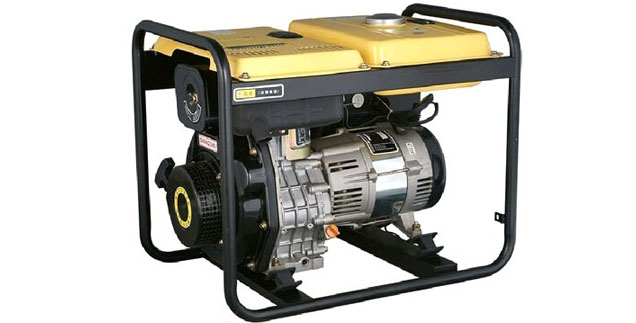

ECO Series 3kw Diesel Portable Generator
Product Name | TP3500DG/E | |
Single-cylinder | 4-stroke | |
3.0kw@50Hz | 3.5kw@60Hz | |
| Brush Type | |
Votage Control | AVR | |
Start System | Recoil or Electric | |
MOQ | 20 Pcs |
1-Year Limited Warranty
178F/6HP
Diesel Engine
3kw or 3.5kw
Max Power
13.5L
Fuel Tank
ECO Design
Open Frame
The ECO series C.A.G diesel portable generator has the support of working professionals everywhere. This series portable diesel generator’s outputs range from 2,000 to 6,000 watts. The air cooled diesel generator can withstand all heavy duty workloads and continuously supply electricity to keep power tools running, as well as lights, refrigerators, freezers, sump pumps, heaters, or air conditioners. The C.A.G ECO series small portable diesel generator also has circuit protection that keeps your unit from getting damaged if you are not able to properly ground your unit.
Model: | TP3500DG |
Rated frequency (Hz): | 50 60 |
Rated output (kVA): | 2.5 3.0 |
Max. output (kVA): | 3.0 3.5 |
Rated Voltage (V): | 115/230 120/240 |
Rated current (A): | 24.3/12.2 27.5/13.8 |
Rated rotation speed (r/min): | 3000 3600 |
Phase NO.: | Single phase or three phase |
Power factor (Cos Φ): | 1.0 |
Insulation: | Grade B |
Pole number: | 2 |
Excitation mode: | Self-excitation & constant voltage (AVR) |
DC12V output: | Connection pole output |
Engine Model: | Engine Model TP178FG |
Displacement (cc): | 296 |
Engine power [KW/(r/min)]: | 3.68/3000 4.0/3600 |
Battery capacity (V-Ah): | 12V 36Ah |
Fuel consumption (g/kW.h): | ≤370 |
Fuel tank capacity (L): | 13.5 |
Continuous running time (hr): | 8.5 |
Noise level: | (7m)dB(A) 77 |
Structure type: | ECO Design Open frame |
Overall dimension(L×W×H)(mm): | 655X480X530 |
Net weight(kg): | 73 |
Working assorting weight (Kg): | 75 |
