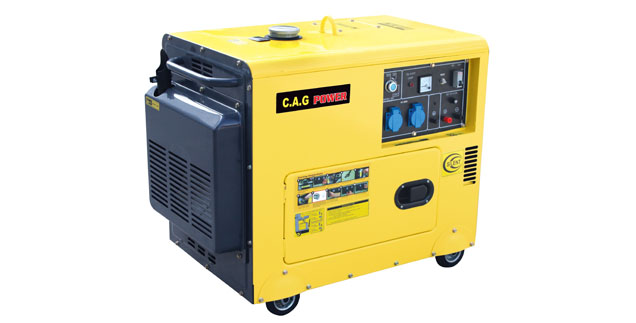

3kw Silent Type Diesel Generator
Product Name | TP3500DGS | |
Single-cylinder | 4-stroke | |
3.0kw@50Hz | 3.5kw@60Hz | |
| Brush Type | |
Votage Control | AVR | |
Start System | Recoil or Electric | |
MOQ | 20 Pcs |
1-Year Limited Warranty
178F/6HP
Diesel Engine
3kw or 3.5kw
Max Power
13.5L
Fuel Tank
Silent Design
SoundProof
C.A.G silent diesel generators are enclosed in a sound shielded cover, their quieter design makes it ideal to provide efficient and reliable standby power to your premises whenever the main power supply is not available. The silent diesel generator fitted with an AVR brush type alternator will make sure the power is stabilized. The ATS (Automatic Transfer Switch) system will automatically activate and turn off your generator. For safe operation, all the quiet diesel generators are equipped with a low oil alert system as well as an automatic engine shut off function.
Model: | TP3500DGS |
Rated frequency (Hz): | 50 60 |
Rated output (kVA): | 2.5 3.0 |
Max. output (kVA): | 3.0 3.5 |
Rated Voltage (V): | 115/230 120/240 |
Rated current (A): | 24.3/12.2 27.5/13.8 |
Rated rotation speed (r/min): | 3000 3600 |
Phase NO.: | Single phase or three phase |
Power factor (Cos Φ): | 1.0 |
Insulation: | Grade B |
Pole number: | 2 |
Excitation mode: | Self-excitation & constant voltage (AVR) |
DC12V output: | Connection pole output |
Engine Model: | Engine Model TP178FG |
Displacement (cc): | 296 |
Engine power [KW/(r/min)]: | 3.68/3000 4.0/3600 |
Battery capacity (V-Ah): | 12V 36Ah |
Fuel consumption (g/kW.h): | ≤370 |
Fuel tank capacity (L): | 13.5 |
Continuous running time (hr): | 8.5 |
Noise level: | (7m)dB(A) 72 |
Structure type: | Soundproof Silent Type |
Overall dimension(L×W×H)(mm): | 950X570X730 |
Net weight(kg): | 100 |
Working assorting weight (Kg): | 102 |
