2500w Gasoline Generator (TS Series)
Product Name | TS2500 | |
Single-cylinder | 4-stroke | |
2.0kw@50Hz | 2.5kw@60Hz | |
| Brush Type | |
Votage Control | AVR | |
Start System | Recoil or Electric | |
MOQ | 20 Pcs |
1-Year Limited Warranty
168F/5.5HP
Gasoline Engine
2.2kw or 2.8kw
Max Power
15L
Fuel Tank
Square Tube Design
Open Frame

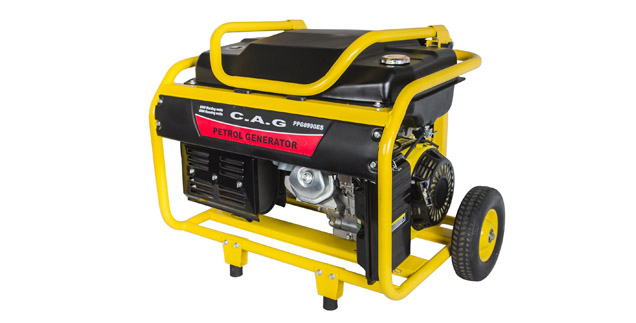

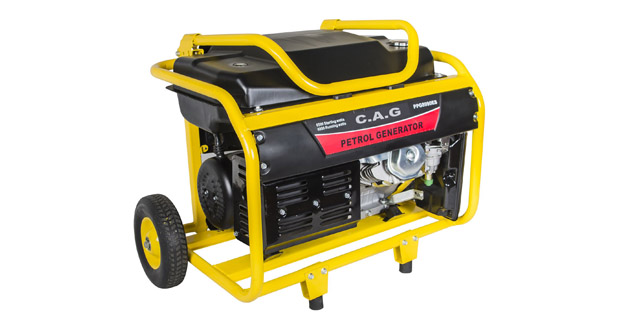

C.A.G TS series Gasoline Portable Generators TS2500 are powered by a reliable single cylinder, OHV air cooled 4-cycle, 5.5HP petrol engine. The OHV engine is equipped with a low oil shutdown system that protects the engine from costly damage. This unit has a square tube design, with dual folding handles and 8-inch never-flat wheels for balanced carrying. This gasoline portable generator provides reliable, clean, and instant power, and is ideal for emergencies, job site use, recreation, household, lawn and garden, operating small tools, and serving as home back-up power.
Model | TS2500 |
Type | Brush |
Voltage Regulate | AVR |
Frequency Hz | 50 | 60 |
Rated AC Voltage (V) | 230V | 120V-240V |
Rated AC Output (KVA) | 2.0 | 2.5 |
Peak AC Output (KVA) | 2.2 | 2.8 |
Power Factor COSφ | 1 |
Model | TE160 |
Type | OHV,4-stroke, single cylinder,Air-cooled |
Bore x Stroke (mm) | 68×45 |
Displacement (ml) | 163 |
Max. output (HP/rpm) | 5.5/3600 |
Fuel Type | Unleaded Gasoline |
Fuel Tank Capacity (L) | 15L |
Continuous Operating 1/2 load (h) | 13 |
Engine Oil Standard | SF or Higher Grade |
Oil Capacity (L/gal) | 0.6/0.16 |
Ignition system | T.C.I. |
Starting System | Recoil and hand-operated /Electric start |
Operating Noise Level (7m) dB(A) | 67 |
Dimensions L×W×H (mm) | 610x460x470 |
Net /Gross Weight (kg) | 38/40 |
20/40FT unit | 225/475 |
