161kg Reversible Plate Compactor
Product Name | TCNP-30 |
Centrifugal Force | 30.5kN |
Weight | 354 lbs |
Compaction Depth | 50cm(19in) |
Frequency | 4000vpm |
MOQ | 20 Pcs |
1 Year Limited Warranty
Reversible Direction
Compactor Type
161kg
Weight
9HP
Gasoline Engine
28in x 18in
Plate Size

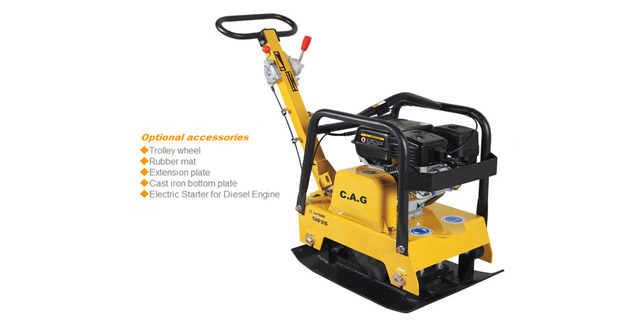

C.A.G Reversible Vibratory Plate Compactor, model TCNP-30, is powered by a 9HP Honda or Loncin petrol engine. This reversible plate compactor with its 28 x 18 inch compactor plate size, provides 30.5kN of centrifugal force oscillating at 4000 vibrations per minute to ensure your project’s base material is fully & completely compacted. The C.A.G reversible plate compactor is the perfect tool to complete your home improvement, paving, brickwork, sidewalk, patio, or for compaction of gravel & sand for raised gardens & retaining walls.
Model | TCNP-30 | |
Engine Type | Honda GX270 | Loncin Petrol G270F |
Power Kw(hp) | 6.6(9.0) | 6.6(9.0) |
Weight kg(lbs) | 161(354) | 161(354) |
Frequency vpm | 4000 | |
Centrifugal Force kN | 30.5 | |
Compaction Depth cm(in) | 50(19) | |
Travel Speed cm/s(in/s) | 25(10) | |
Efficiency m2/hr(ft2/hr) | 570(6100) | |
Plate Size cm(in) | 73*45(28*18)/73*36(28*14) Extension plate:73*6(28*2.3) | |
Package cm(in) | 78.5*48*109(without extension plate) | |

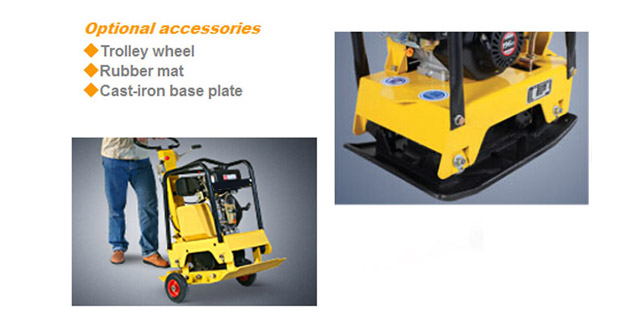

Optional trolley wheel | ||
Optional rubber mat | ||
Optional Extension plate | ||
Optional Cast iron bottom plate | ||
Optional Electric Starter for Diesel Engine | ||
Optional Engine: B&S 6.5HP, Kohler CH395 9.5HP, Robin EX17 6HP / EY28 7.5HP |
