101kg Forward Plate Compactors
Product Name | TPCNP-90 |
Centrifugal Force | 15kN |
Weight | 221 lbs |
Compaction Depth | 30cm(12in) |
Frequency | 4200vpm |
MOQ | 20 Pcs |
1 Year Limited Warranty
Single direction
Compactor Type
101kg
Weight
4HP
Diesel Engine
20in x 18in
Plate size
C.A.G’s single-direction vibratory plate compactor, model No.: TPCNP-90, is Powered by Air cooled, Single Cylinder 4HP Diesel engine, its working weight is 101kg/221 lbs. This vibratory plate compactor delivers 15kN of centrifugal force, ensuring it gets the job done quickly. Its compactor plate size is 22 x 17 in. with speeds of up to 4,200 vibrations per minute and 633 square meters per hour. This plate compactor is most suitable for compacting your own gravel for patios and finishing asphalt, paths, soil, sand, driveways, and sloping surfaces.
Model | TPCNP90 |
Engine Type | Diesel Engine 170F |
Power Kw(hp) | 3.2(4.2) |
Weight kg(lbs) | 101(221) |
Frequency vpm | 4200 |
Centrifugal Force kN | 15 |
Compaction Depth cm(in) | 30(12) |
Efficiency m2/hr(ft2/hr) | 633(6814) |
Plate Size cm(in) | 55*44(22*17) |
Package cm(in) | 64*48*76(25.2*19*30) |

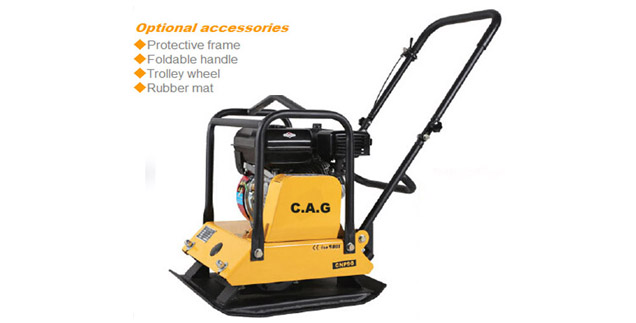

Optional protective frame | |

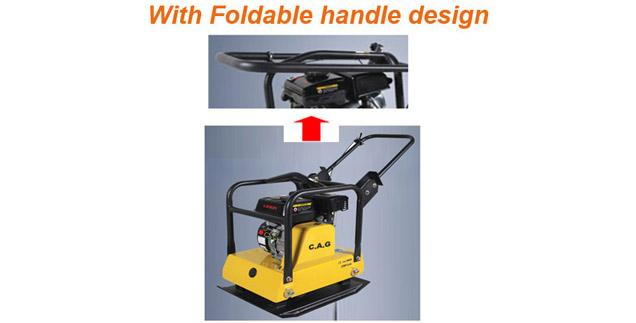

Optional foldable handle | |
Optional trolley wheel | |

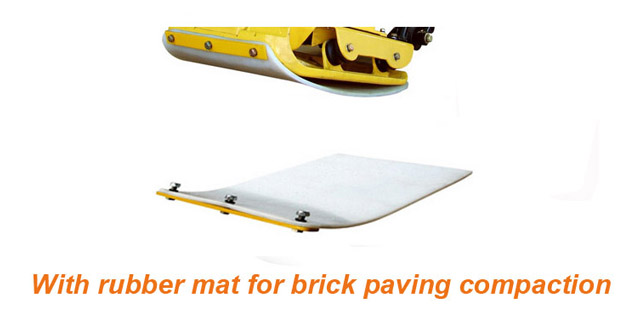

Optional rubber mat | |

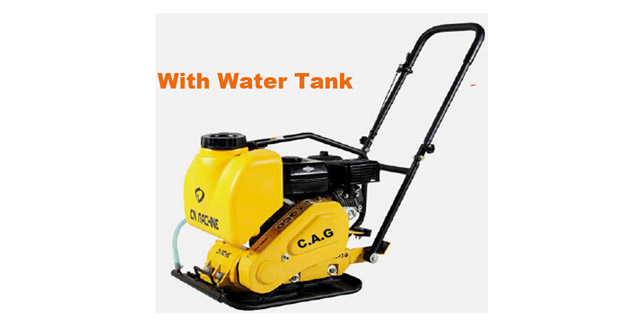

Optional water tank | |
Optional Engine: B&S 5HP/6.5HP ,Kohler CH260 6HP , Robin EX17 6HP / EY20 5HP |
