90kg Forward Plate Compactors
Product Name | TCNP-90 |
Centrifugal Force | 15kN |
Weight | 197 lbs |
Compaction Depth | 30cm(12in) |
Frequency | 4200vpm |
MOQ | 20 Pcs |
1 Year Limited Warranty
Single direction
Compactor Type
90kg
Weight
5.5 or 6.5HP
Gasoline Engine
22in x 17in
Plate size
C.A.G’s single-direction vibratory plate compactor, model No.: TCNP-90, is powered by a 5.5HP Honda or 6.5HP Loncin petrol engine, its working weight is 90kg/197 lbs. This vibratory plate compactor delivers 15kN of centrifugal force, ensuring it gets the job done quickly. Its compactor plate size is 22 x 17 in. with speeds of up to 4,200 vibrations per minute and 633 square meters per hour. This plate compactor is most suitable for compacting your own gravel for patios and finishing asphalt, paths, soil, sand, driveways, and sloping surfaces.
Model | TCNP-90 | |
Engine Type | Honda GX160 | Loncin Petrol G200F |
Power Kw(hp) | 4.0(5.5) | 4.8(6.5) |
Weight kg(lbs) | 90(197) | |
Frequency vpm | 4200 | |
Centrifugal Force kN | 15 | |
Compaction Depth cm(in) | 30(12) | |
Efficiency m2/hr(ft2/hr) | 633(6814) | |
Plate Size cm(in) | 55*44(22*17) | |
Package cm(in) | 64*48*76(25.2*19*30) | |
Optional protective frame | ||

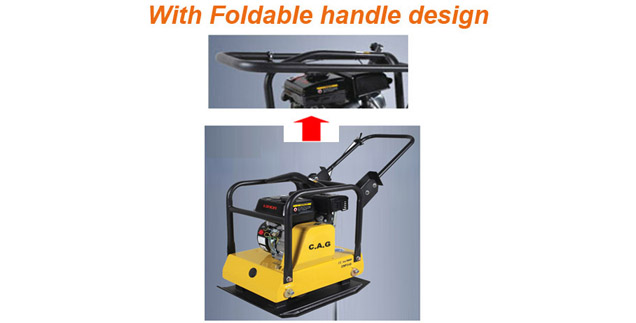

Optional foldable handle | ||
Optional trolley wheel | ||

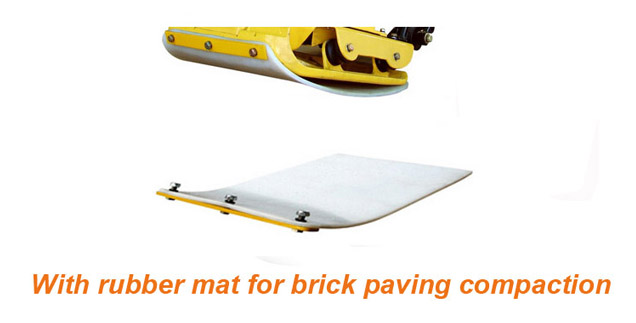

Optional rubber mat | ||
Optional water tank | ||
Optional Engine: B&S 5HP/6.5HP ,Kohler CH260 6HP , Robin EX17 6HP / EY20 5HP |
