60kg Forward Plate Compactors
Product Name | TCNP-10 |
Centrifugal Force | 10.5kN |
Weight | 131 lbs |
Compaction Depth | 20cm(8in) |
Frequency | 5600vpm |
MOQ | 20 Pcs |
1 Year Limited Warranty
Single direction
Compactor Type
60kg
Weight
5.5 or 6.5HP
Gasoline Engine
20in x 14in
Plate size
C.A.G’s single-direction vibratory plate compactor, model No.: TCNP-10, is powered by a 5.5HP Honda or 6.5HP Loncin petrol engine, its working weight is 60kg/131 lbs. This vibratory plate compactor delivers 10.5kN of centrifugal force, ensuring it gets the job done quickly. Its compactor plate size is 20 x 14 in. with speeds of up to 5,600 vibrations per minute and 450 square meters per hour. This plate compactor is most suitable for compacting your own gravel for patios and finishing asphalt, paths, soil, sand, driveways, and sloping surfaces.
Model | TCNP-10 | |
Engine Type | Honda GX160 | Loncin Petrol G200F |
Power Kw(hp) | 4.0(5.5) | 4.8(6.5) |
Weight kg(lbs) | 60(131) | |
Frequency vpm | 5600 | |
Centrifugal Force kN | 10.5 | |
Compaction Depth cm(in) | 20(8) | |
Travel Speed cm/s(in/s) | 40(16) | |
Efficiency m2/hr(ft2/hr) | 450(4800) | |
Plate Size cm(in) | 50*36(20*14) | |
Package cm(in) | 75*38*64(29.5*15*25.2) | |

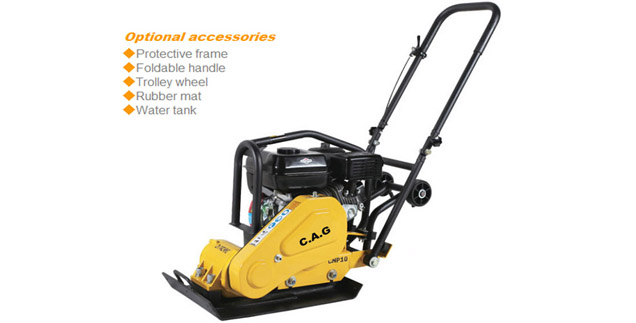

Optional protective frame | ||

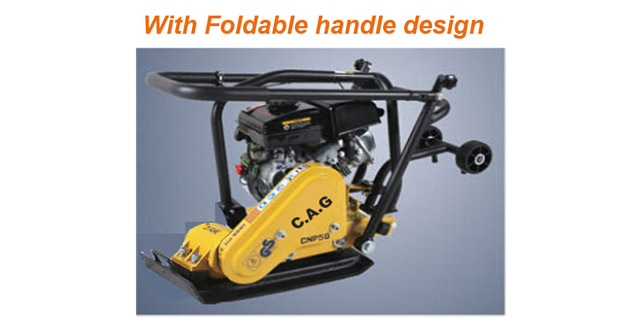

Optional foldable handle | ||
Optional trolley wheel | ||
Optional rubber mat | ||
Optional water tank | ||
Optional Engine: B&S 5HP/6.5HP , Kohler CH260 6HP , Robin EX17 6HP / EY20 5HP |
