Double Drum Gasoline Roller
Product Name | DVR600 |
Power Sources | 4-stroke Gasoline Engine |
Operating weight | 1190 LB |
Centrifugal force | 20KN |
Frequency | 70Hz |
MOQ | 20 Pcs |
1 Year Limited Warranty
540KG
Operating weight
426mm
Roller Diameter
600mm
Roller Width
Full Hydraulic Drive
Transmission

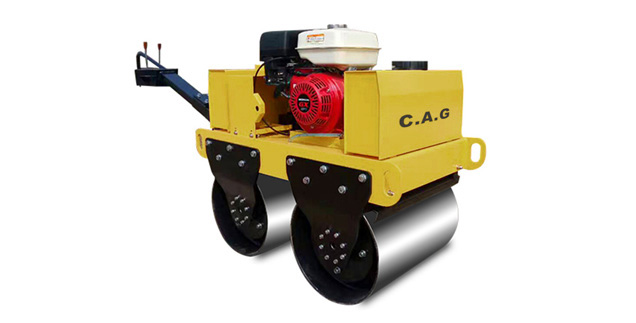

C.A.G’s DVR600 double drum vibratory roller is powered by a 9HP Honda petrol engine or 7hp Chinese Brand diesel engine. This double drum roller, with its full hydraulic driving system guarantees smooth speed control and high travel speeds. This walk behind roller has a 540KG or 1190 LB operating weight and 600mm working width. This roller can help you quickly and economically compact base and asphalt surfaces. It’s ideal for the compaction of sand, gravel, and cohesive soil.
Model | DVR600 | |
Engine Brand | HONDA GX270 | S178F |
Engine Model | Gasoline & Single cylinder & Vertical & Four stroke & Overhead valves | Diesel & Single cylinder & Vertical & Four stroke & Air & Direct injection |
Power | 6.7kw | 4.4kw |
Rotating Speed | 3600rpm | 3600rpm |
Fuel Capacity | 5.9L | 3.5L |
Lubricating Oil | 1.1L | 1.1L |
Start Up | Hand recoil / electric start | |
Static Load | 45n/cm | |
Vibration Frequency | 70hz | |
Nominal Amplitude | 0.6mm | |
Exciting Force | 20kn | |
Walking Way | Two-way hydraulic chain drive | |
Walking Speed | 0~3.8km/h | |
Theoretical Climbing Ability | 30% | |
Hydraulic Tank Capacity | 18L | |
Water Tank Capacity | 20L | |
Watering System | Gravity watering | |
Wheel Size | Ф426*600mm*2 | |
Full Width | 780mm | |
Machine Length (Protective Frame Dumping) | 2480mm | |
Machine Height (Protective Stand Erect) | 1820mm | |
Package Size | 1600*850*1900mm | |
Weight | 540kg |
