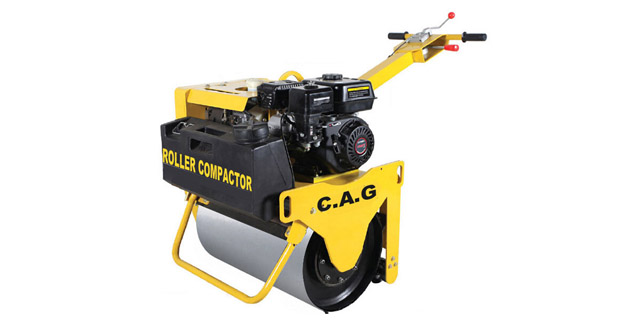

Single Drum Vibratory Roller
Product Name | SVR600 |
Power Sources | 4-stroke Gasoline Engine |
Operating weight | 728 LB |
Centrifugal force | 15KN |
Frequency | 70Hz |
MOQ | 20 Pcs |
1 Year Limited Warranty
330KG
Operating weight
426mm
Roller Diameter
600mm
Roller Width
Static Hydraulic Drive
Transmission
C.A.G’s SVR600 single drum vibratory roller is powered by a Honda 5.5HP petrol engine or 4HP Chinese diesel engine. This walk behind roller takes a 330KG or 728 LB operating weight, and the working width reaches 600mm, and 426mm roller diameter. C.A.G single drum vibratory roller provides excellent performance for the compaction of sand, soil, gravel, and asphalt on roadways, bridges, and parking structures. It is especially useful on asphalt applications and repair and maintenance work.
Model | SVR600 | |
Engine Brand | HONDA GX160 | S173F |
Engine Model | Gasoline & Single cylinder & Vertical & Four stroke & Overhead valves | Diesel & Single cylinder & Vertical & Four stroke & Air & Direct injection |
Power | 4.1kw | 3.1kw |
Rotating Speed | 3600rpm | 3600rpm |
Fuel Capacity | 3.6L | 2.5L |
Lubricating Oil | 0.6L | 0.75L |
Start Up | Hand recoil / electric start | |
Static Load | 45n/cm | |
Vibration Frequency | 70hz | |
Nominal Amplitude | 0.6mm | |
Exciting Force | 15kn | |
Walking Way | Two-way hydraulic chain drive | |
Walking Speed | 3.8km/h | |
Theoretical Climbing Ability | 30% | |
Hydraulic Tank Capacity | 15L | 10L |
Water Tank Capacity | 22L | |
Watering System | Gravity watering | |
Wheel Size | Ф426*600mm | |
Full Width | 780mm | |
Machine Length (Protective Frame Dumping) | 1600mm | |
Machine Height (Protective Stand Erect) | 1060mm | |
Package Size | 1050*850*1200mm | |
Weight | 330kg |
