275kg Hydraulic Reversible Compactor
Product Name | TPCNP-330Y |
Centrifugal Force | 38kN |
Weight | 605 lbs |
Compaction Depth | 85cm(33.5in) |
Frequency | 4800vpm |
MOQ | 20 Pcs |
1 Year Limited Warranty
Hydraulic Reversible
Compactor Type
275kg
Weight
9HP
Diesel Engine
32.7in x 25in
Plate Size

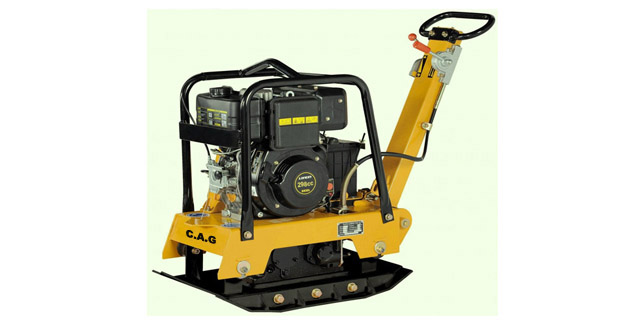

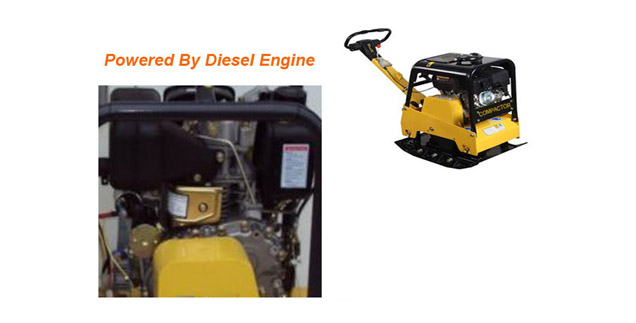

C.A.G Hydraulic Reversible Plate Compactor, model TPCNP-330Y, is powered by a Air cooled 9HP Diesel engine. This reversible plate compactor with its 32.7 x 25-inch compactor plate size, provides 38kN of centrifugal force oscillating at 4800 vibrations per minute to ensures it provides superior compaction in any direction, forward and reverse. C.A.G heavy-duty hydraulic reversible plate compactor is perfectly suited for the compaction of building back-fill, compaction of interlocking paving stones, and high production compaction applications involving granular soils.
Model | TPCNP-330Y |
Engine Type | Diesel Engine 186F |
Power Kw(hp) | 6.6(9.0) |
Weight kg(lbs) | 275(605) |
Frequency vpm | 4800 |
Centrifugal Force kN | 38 |
Compaction Depth cm(in) | 85(33.5) |
Travel Speed cm/s(in/s) | 30(11.8) |
Efficiency m2/hr(ft2/hr) | 270(2906) |
Plate Size cm(in) | 83*64(32.7*25) |
Package cm(in) | 90*66*125(35*26*49) |

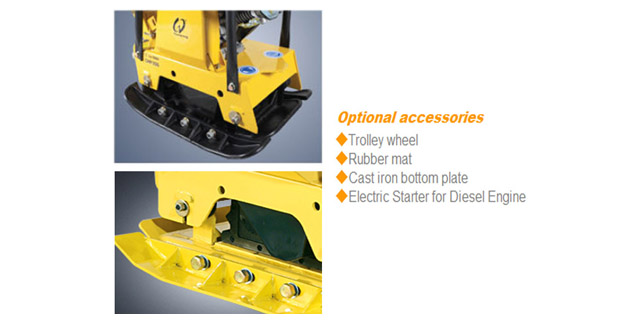

Optional trolley wheel | |
Optional rubber mat | |
Optional cast-iron base plate | |
Optional Electric starter for Diesel Engine | |
Optional Engine: B&S 13.5HP or Kohler CH395 9.5HP /CH440 14HP |
