125kg Hydraulic Reversible Compactor
Product Name | TCNP-25Y |
Centrifugal Force | 25kN |
Weight | 275 lbs |
Compaction Depth | 35cm(13.8in) |
Frequency | 4320vpm |
MOQ | 20 Pcs |
1 Year Limited Warranty
Hydraulic Reversible
Compactor Type
125kg
Weight
5.5 or 6.5HP
Gasoline Engine
25in x 15in
Plate Size

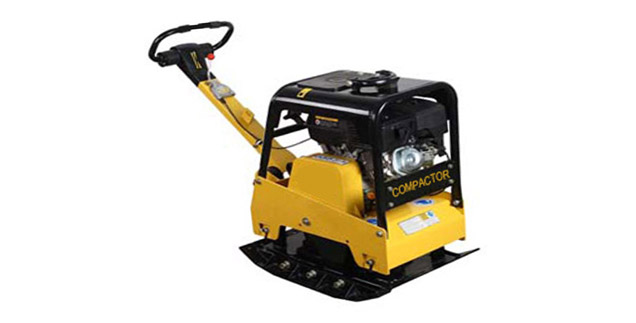

C.A.G Hydraulic Reversible Plate Compactor, model TCNP-25Y, is powered by a 5.5HP Honda or 6.5HP Loncin petrol engine. This reversible plate compactor with its 25 x 15-inch compactor plate size, provides 25kN of centrifugal force oscillating at 4320 vibrations per minute to ensures it provides superior compaction in any direction, forward and reverse. C.A.G heavy-duty hydraulic reversible plate compactor is perfectly suited for the compaction of building back-fill, compaction of interlocking paving stones, and high production compaction applications involving granular soils.
Model | TCNP-25Y | |
Engine Type | Honda GX160 | Loncin Petrol G200F |
Power Kw(hp) | 4.0(5.5) | 4.8(6.5) |
Weight kg(lbs) | 125(275) | |
Frequency vpm | 4320 | |
Centrifugal Force kN | 25 | |
Compaction Depth cm(in) | 35(13.8) | |
Travel Speed cm/s(in/s) | 33(13) | |
Efficiency m2/hr(ft2/hr) | 168(1808) | |
Plate Size cm(in) | 65*40(25*15) | |
Package cm(in) | 78*44*125(31*17*49) | |

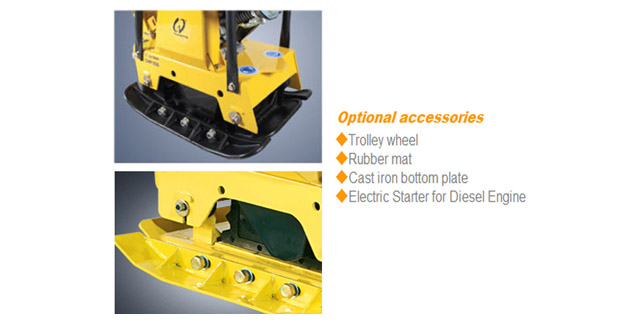

Optional Cast iron bottom plate | ||
Optional trolley wheel | ||
Optional rubber mat | ||
Optional Engine: B&S 5HP/6.5HP , Kohler CH260 6HP , Robin EX17 6HP / EY20 5HP |
