137kg Reversible Plate Compactor
Product Name | TPCNP-25 |
Centrifugal Force | 25kN |
Weight | 300 lbs |
Compaction Depth | 30cm(12in) |
Frequency | 4300vpm |
MOQ | 20 Pcs |
1 Year Limited Warranty
Reversible Direction
Compactor Type
137kg
Weight
4HP
Diesel Engine
25in x 16in
Plate Size

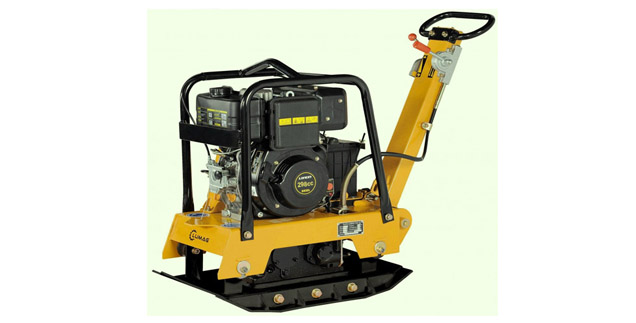

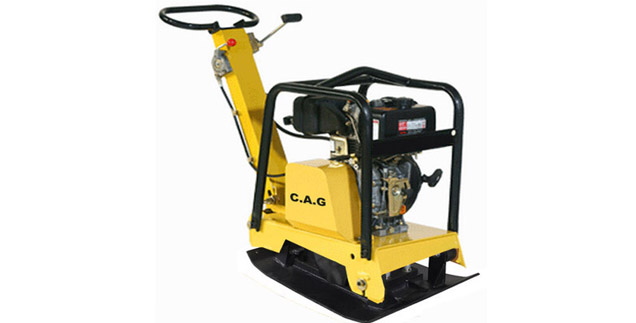

C.A.G Reversible Vibratory Plate Compactor, model TPCNP-25, is powered by a Air cooled, Single Cylinder 4HP Diesel engine. This reversible plate compactor with its 25 x 16 inch compactor plate size, provides 25kN of centrifugal force oscillating at 4300 vibrations per minute to ensure your project’s base material is fully & completely compacted. The C.A.G reversible plate compactor is the perfect tool to complete your home improvement, paving, brickwork, sidewalk, patio, or for compaction of gravel & sand for raised gardens & retaining walls.
Model | TPCNP-25 |
Engine Type | Diesel Engine 170F |
Power Kw(hp) | 3.1(4.0) |
Weight kg(lbs) | 137(300) |
Frequency vpm | 4300 |
Centrifugal Force kN | 25 |
Compaction Depth cm(in) | 30(12) |
Travel Speed cm/s(in/s) | 25(10) |
Plate Size cm(in) | 63*40(25*16) |
Package cm(in) | 71*43*110(28*17*43.3) |

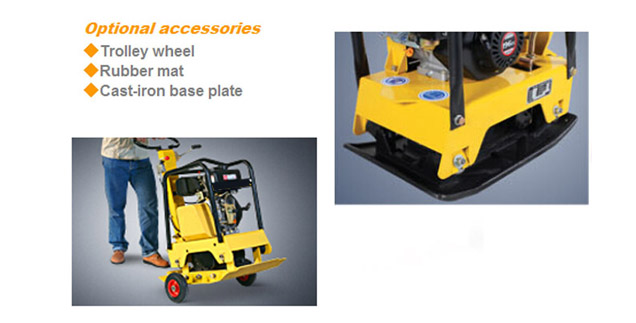

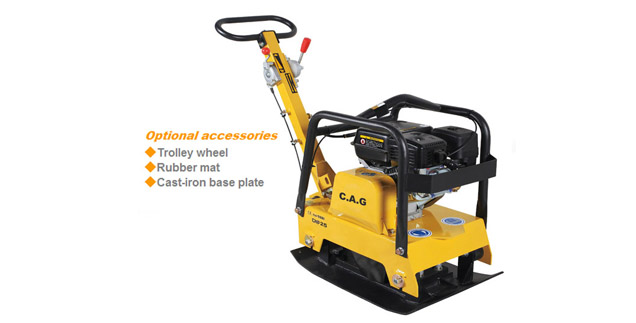

Optional trolley wheel | |
Optional rubber mat | |
Optional cast-iron base plate | |
Optional Engine: B&S 5HP/6.5HP , Kohler CH260 6HP , Robin EX17 6HP / EY20 5HP |
